4×4 • MINE-RESISTANT AMBUSH PROTECTED

PREDATOR4×4 MRAP

A next-generation high-mobility armored platform engineered around crew survivability — manufacturer-stated STANAG Level 3 protection, a 350 hp Cummins powertrain and adaptable mission configurations.


SCROLL
STANAG 0
Stated Protection Level
0HP
Cummins Power
0
Troop Capacity
0KM
Cruising Range
0KM/H
Max Speed
Engineering Focus

Built to outlast the threat

Every subsystem is engineered around a single principle — bring the crew home. Here is what sets the Predator apart on the modern battlefield.

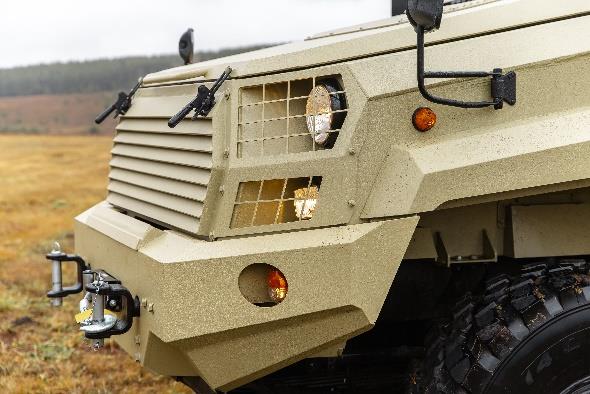

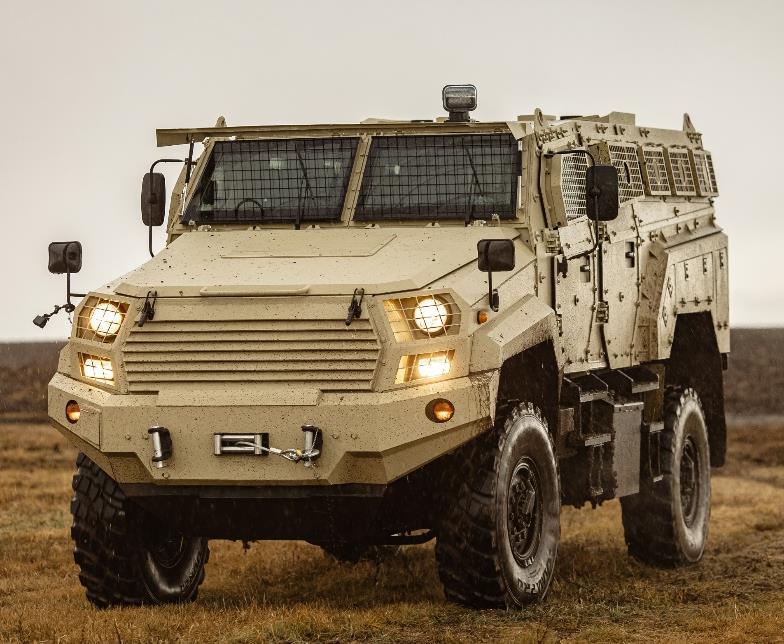

PREDATOR 4x4 MRAP front three-quarter view in the field V-shaped monocoque design

Protection-led Design

A V-shaped monocoque hull is designed to help protect occupants from ballistic and blast threats. STANAG 4569 Level 3 is manufacturer-stated; the exact test scope requires confirmation.

350 HP Cummins Drivetrain

The published Cummins ISB6.7 configuration specifies 1,078 N·m of torque, supporting mobility in demanding terrain. Final performance depends on loading and specification.

Up to 12 Occupants

Published specifications state capacity for up to 12 people in total. Seating, equipment and ingress arrangements depend on the final mission configuration.

One Platform, Many Missions

Proposed APC, police, ambulance and utility variants share a common platform concept, offering potential for coordinated fleet training and support.

Why choose PREDATOR?

MRAP protection.
Direct commercial supply.

A protected vehicle is a decision about people, missions and long-term fleet readiness. PREDATOR combines a purpose-built MRAP concept, adaptable mission configurations and straightforward commercial procurement of unarmed vehicles.

01 / Protection

Bring the crew home.

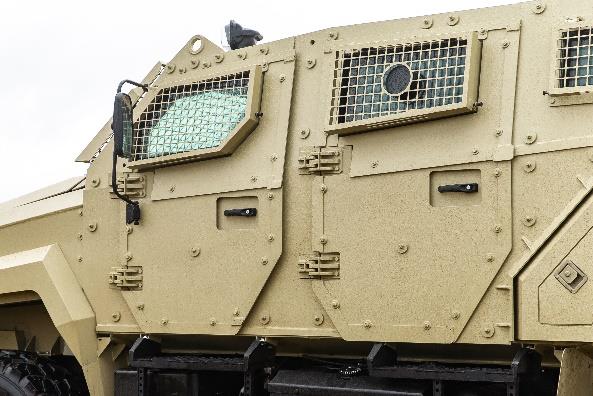

A V-shaped monocoque armored hull is designed with personnel survivability in mind. STANAG 4569 Level 3 protection is stated by the manufacturer; the scope and test evidence should be reviewed for the selected variant.

Buyer value: A protection-led platform for high-risk mobility.
02 / Adaptability

One platform. Different missions.

APC, internal security, ambulance and utility-body concepts allow the same vehicle family to be considered for different operational roles. Equipment and integration are defined by the chosen configuration.

Buyer value: A coherent starting point for a multi-role fleet.
03 / Mobility

Designed to go further.

The published Cummins configuration combines 4×4 traction and 350 hp with a stated cruising range of up to 1,000 km, offering a basis for demanding patrol and extended-distance missions.

Buyer value: Mobility and endurance for dispersed operations.
04 / Commercial access

Unarmed. Direct. Commercial.

PREDATOR is offered in unarmed configurations for direct commercial supply as a protected vehicle. This approach reflects the manufacturer's assurances and our practical experience with such transactions. Discuss specifications, pricing, delivery and support directly with the project team.

Buyer value: A simpler, direct purchasing dialogue without a weapons package.

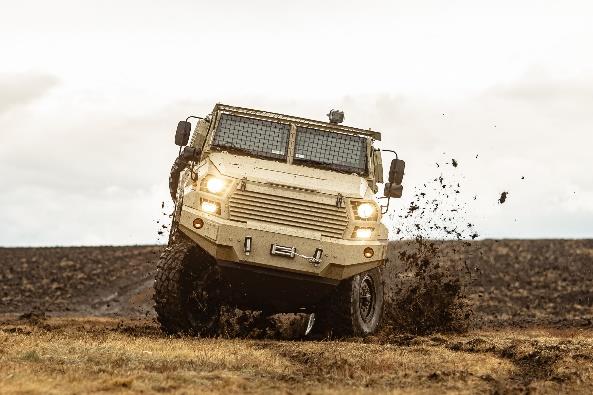

Field Test

See it in motion

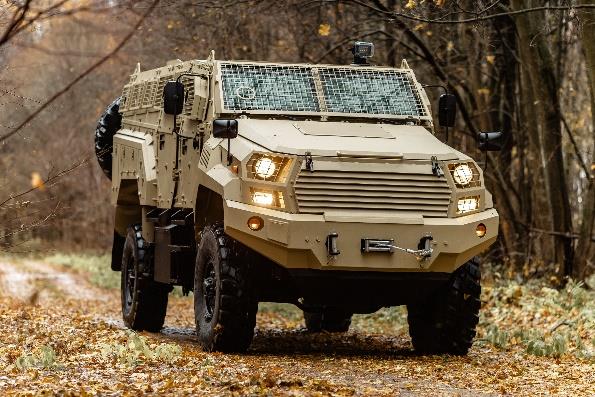

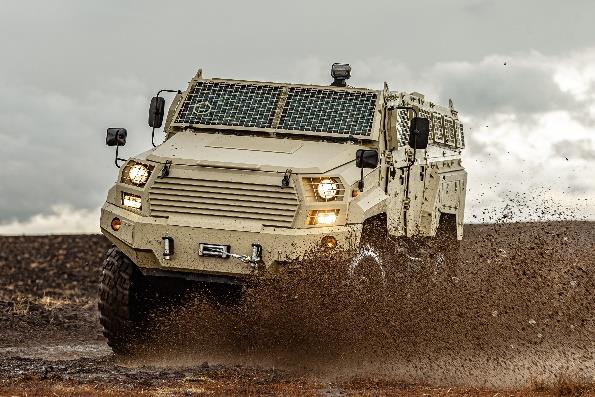

Off-road mobility trials — dependent spring suspension, high ground clearance and full-load traction across broken terrain.

REC • PREDATOR 4×4
Technical Specifications

Engineering data

Complete manufacturer specification for the base PREDATOR 4×4 MRAP configuration.

Engine Model
Cummins ISB6.7
Liquid-cooled, turbocharged, electronically controlled
Power Output
256 kW / 350 hp
Torque
1078 N·m
Transmission
8-speed Manual
Optional 7-speed Automatic
Suspension
Dependent Spring
Wheels / Tyres
14.00 R20
Maximum Speed
120 km/h
Cruising Range
1000 km
Overall Length
7426 mm
Overall Width
2550 mm
Overall Height
2930 mm
Curb Weight
14 150 kg
Gross Weight
16 000 kg
Drive Configuration
4 × 4

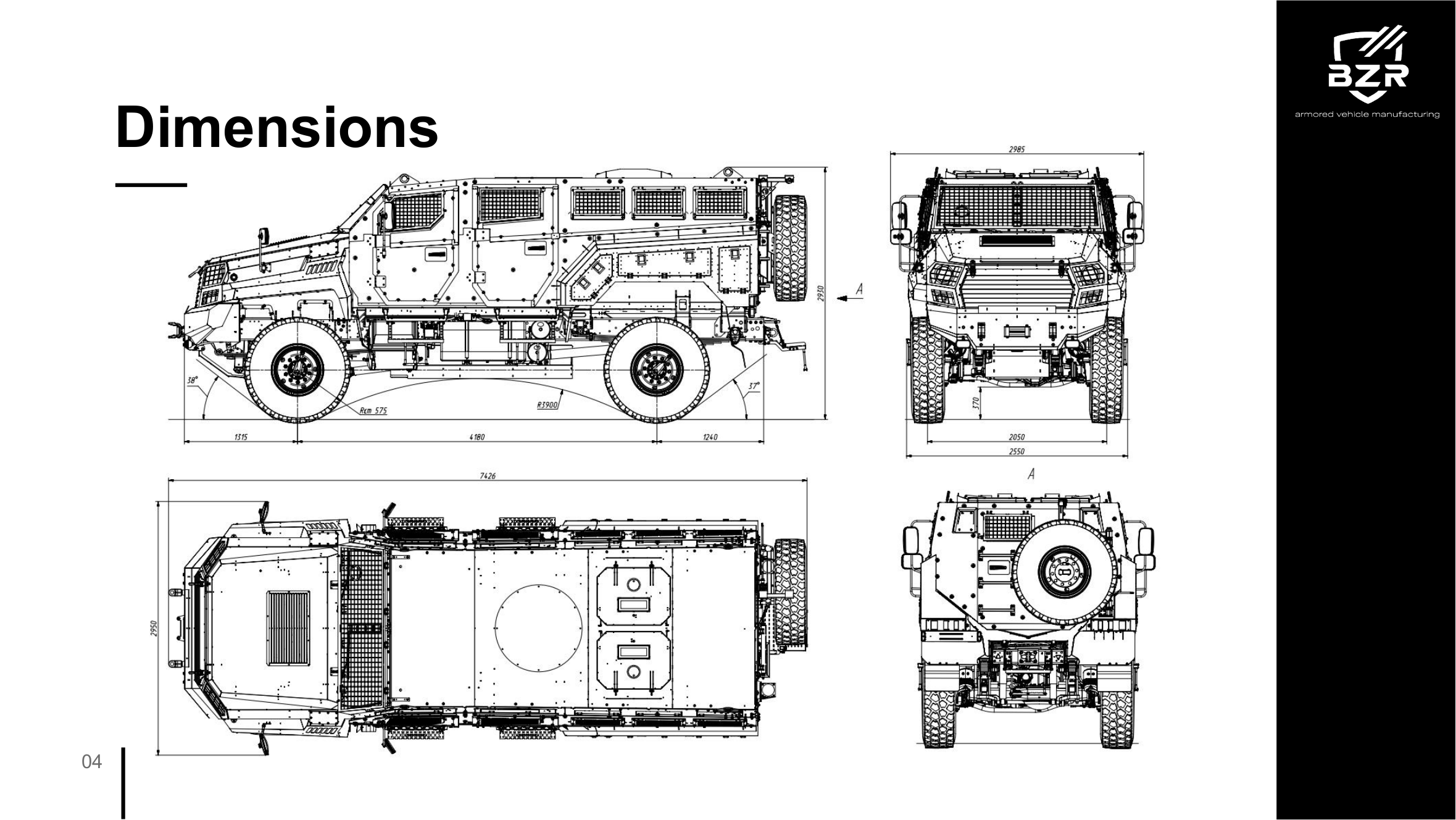

PREDATOR 4x4 MRAP technical dimensions blueprint — side,
              front, top and rear projections
Fig. 01 — Dimensional drawings & geometry (dimensions in mm)
Protection Level
STANAG Level 3
Ballistic & blast protection
Hull Type
V-Shaped MRAP
Troop Capacity
12 persons
Armored Doors
5 doors

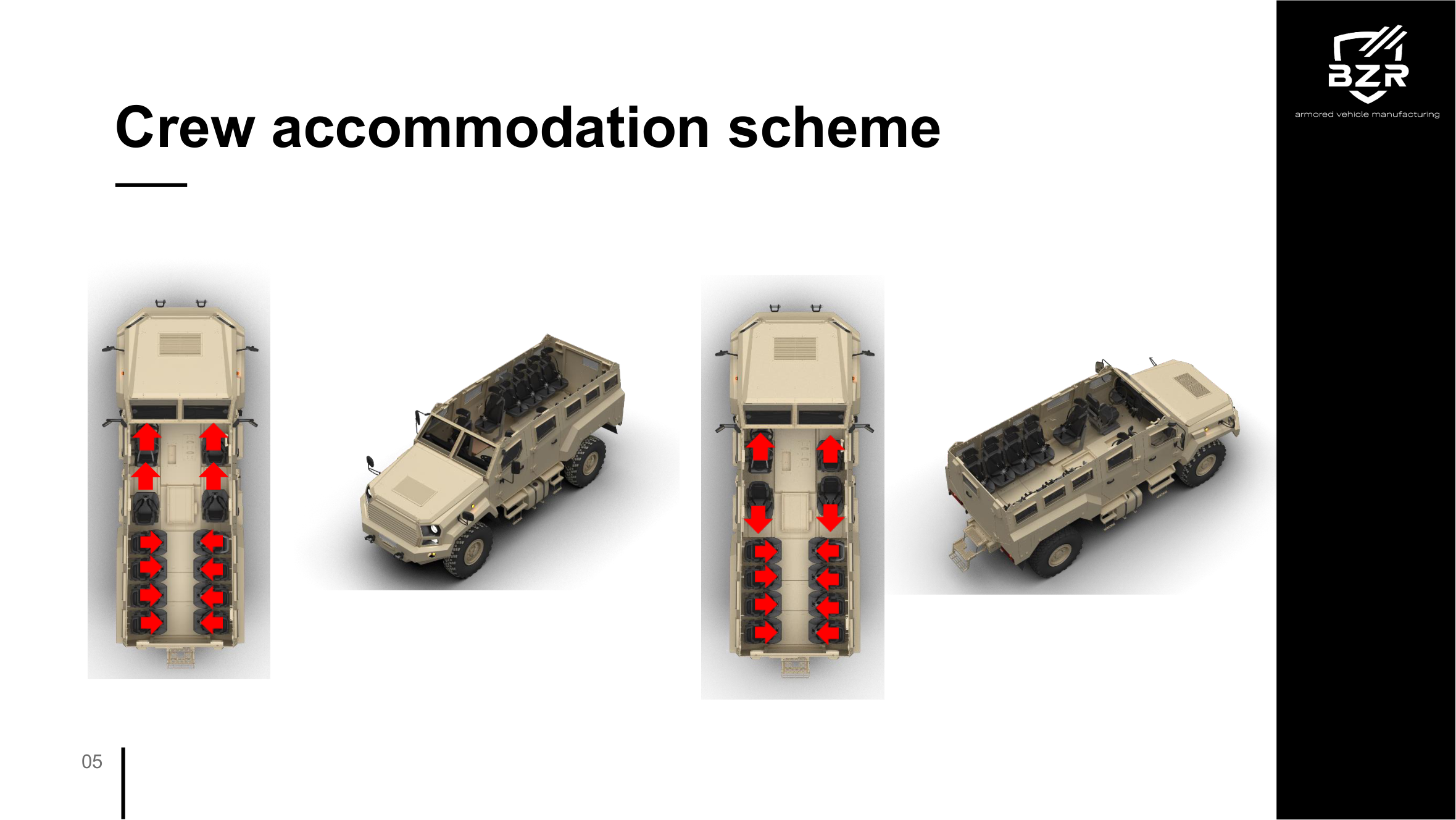

PREDATOR 4x4 MRAP crew accommodation scheme showing 12-seat
              layout
Fig. 02 — Crew accommodation scheme (12-seat protected layout)
Configurations

One chassis, five missions

Reconfigure the Predator to the mission at hand — select a variant to explore.

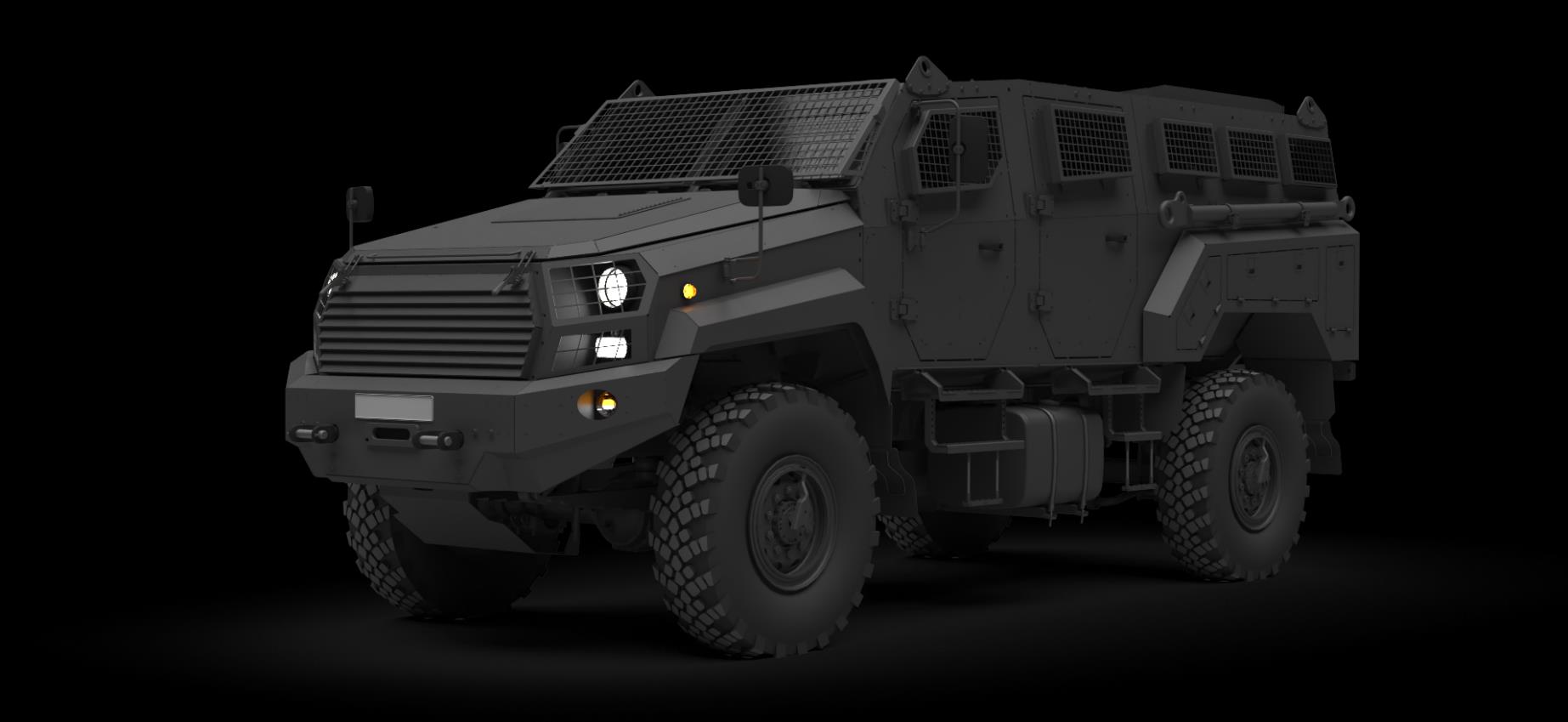

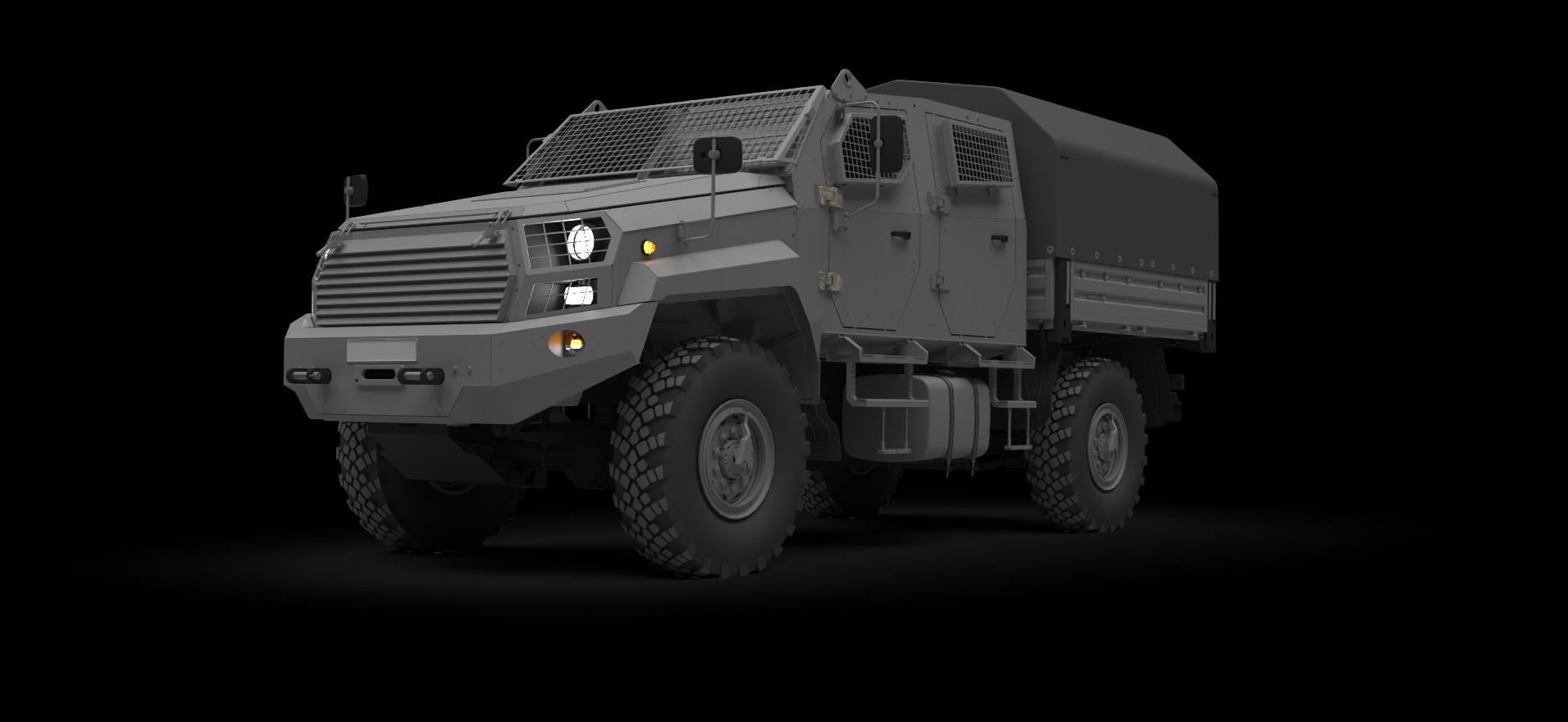

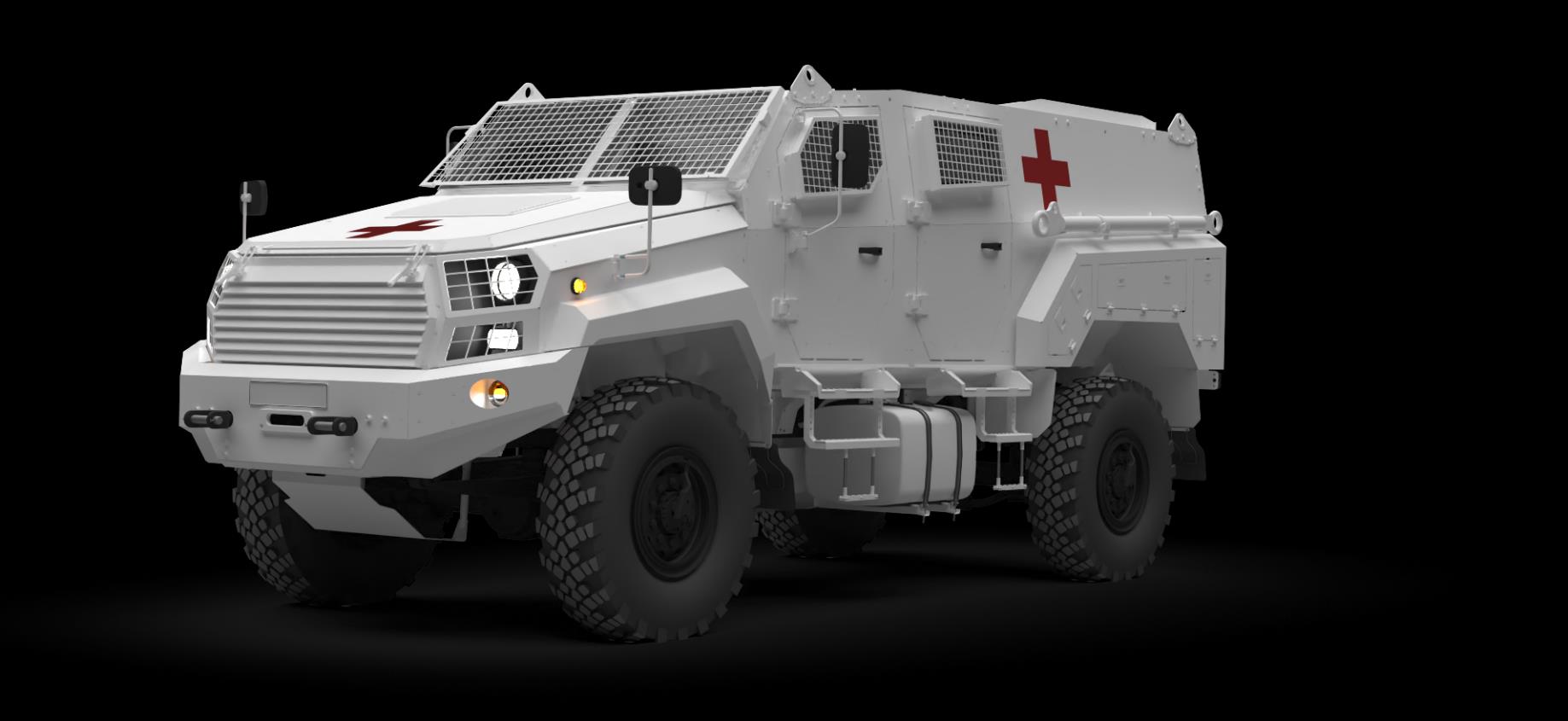

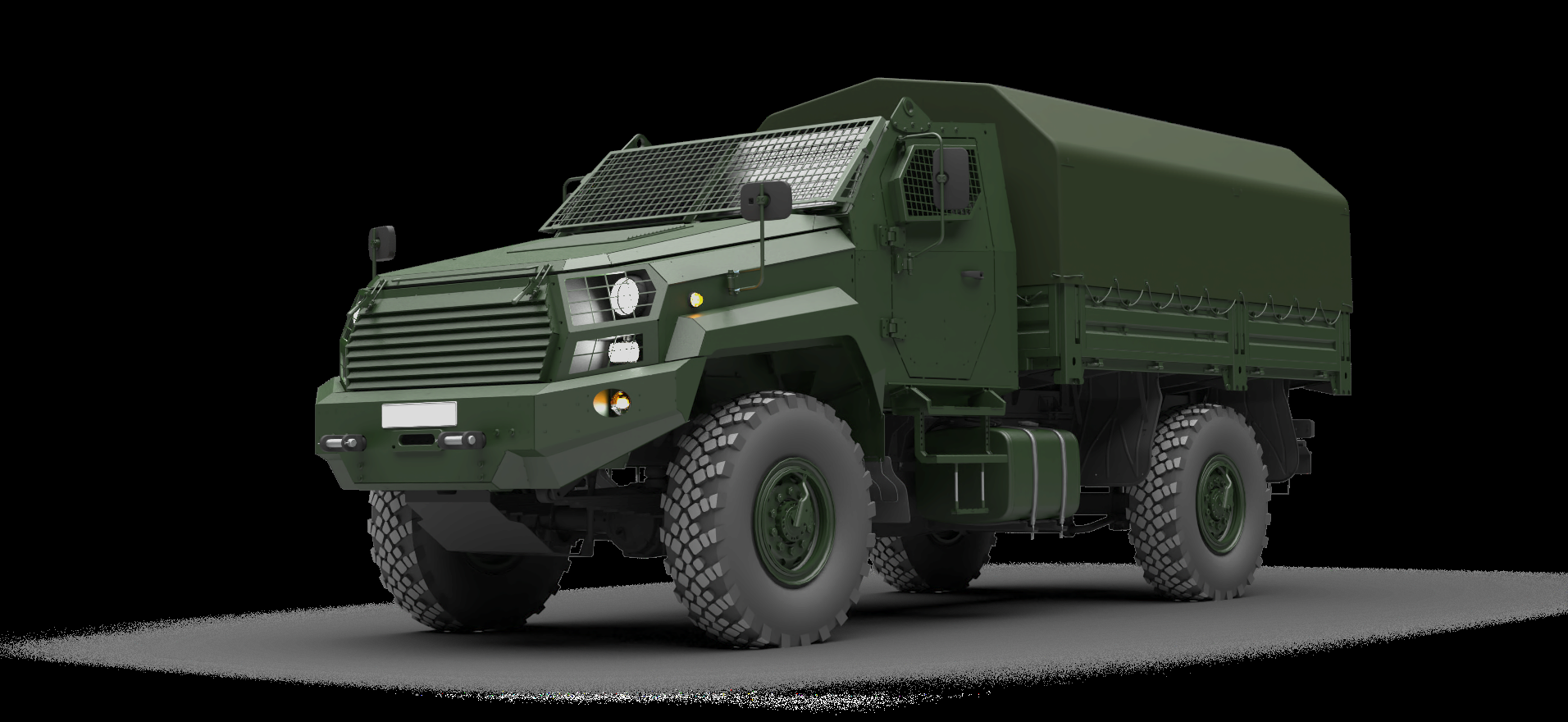

APC with turret configuration Police configuration Ambulance configuration Pickup single-row cabin Pickup double-row cabin
01 / 05

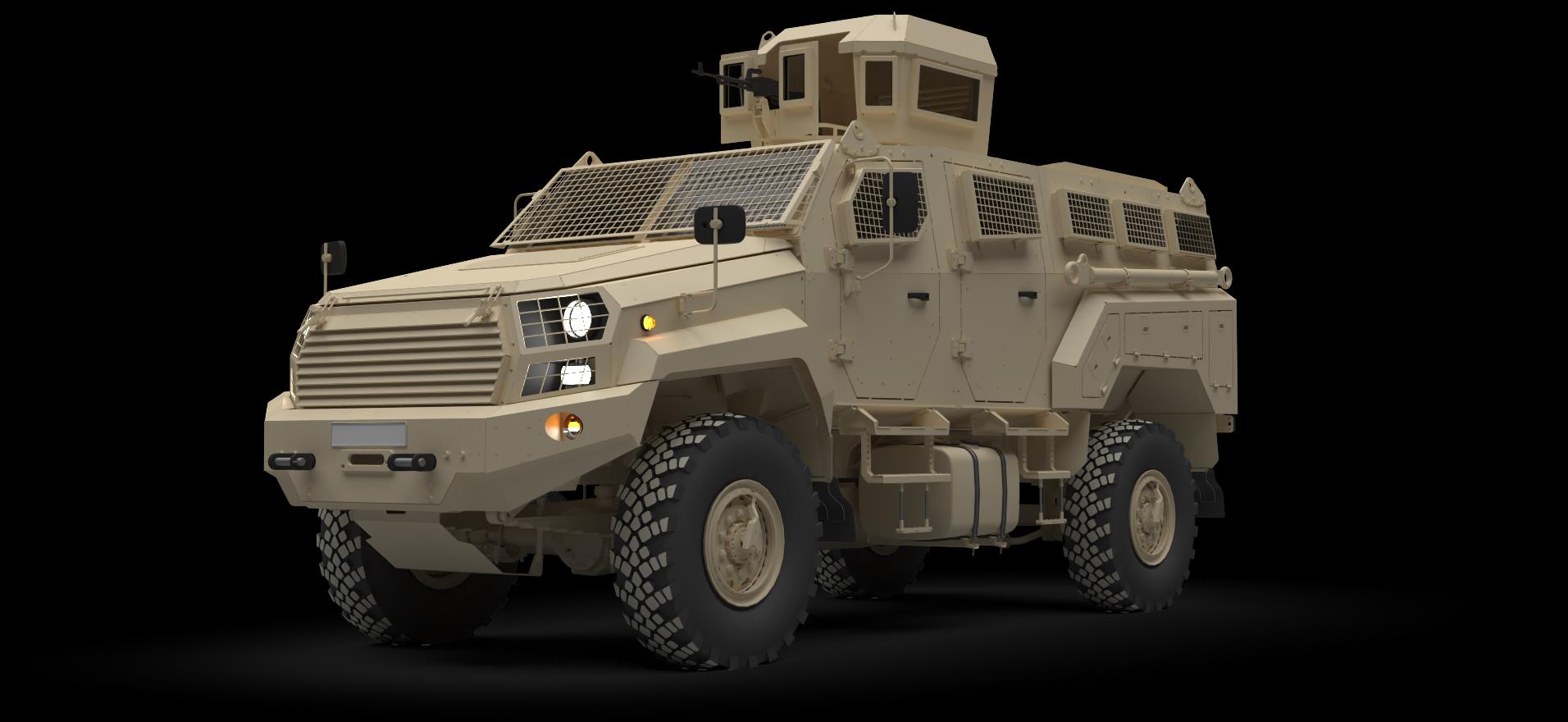

APC with Turret

The core armored personnel carrier variant, equipped with a rotating weapon turret for fire support while transporting the full protected crew complement.

Mission Systems

Ready for any payload

The vehicle can be prepared for the placement of a wide range of weapon, fire-support and command systems.

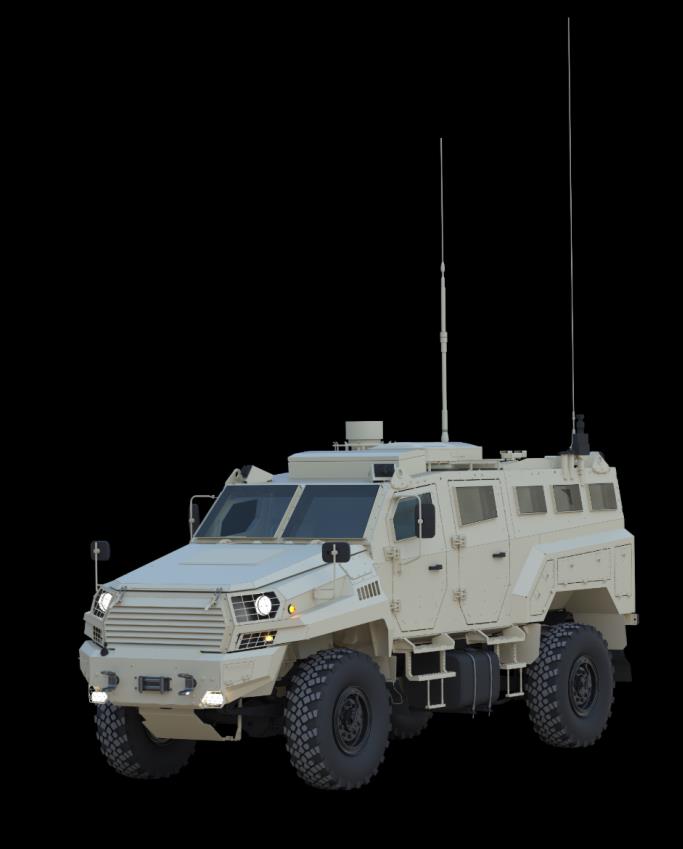

PREDATOR command-and-communications vehicle with elevated antenna

Command & Comms

Integrated communication and command suite for networked C2, battlefield coordination and protected field communications.

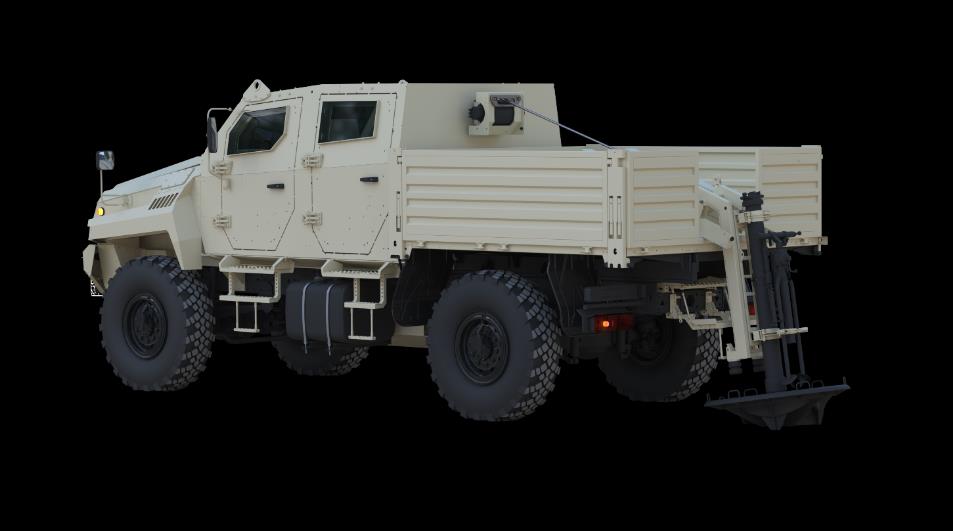

PREDATOR armored pickup logistics configuration

Pickup Logistics Platform

Armored utility and resupply configuration with a protected cab and open cargo bed for equipment, supplies and field support.

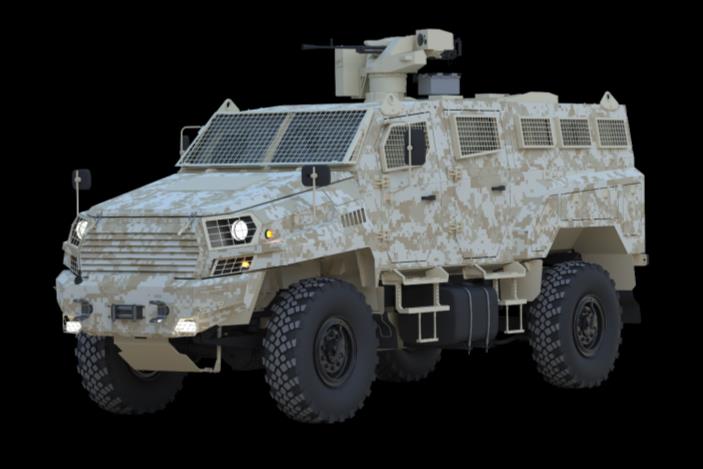

PREDATOR with remotely controlled weapon station

RCWS 12.7 mm

Remote-controlled weapon station that enables the operator to engage targets from inside the protected hull.

PREDATOR with 30 mm turret-mounted weapon station

30 mm Weapon Station

Turret-mounted automatic cannon for heavy direct-fire support and armored-target engagement.
